CD05HPT Low Latency 50ms S Band 2.4G Drone Video Transmitter Airborne Uplink

Brand Name : SUNTOR

Model Number : CD05HPT

Certification : RoHS CE FCC

Place of Origin : China

MOQ : 1set

Price : communicate

Payment Terms : Western Union, T/T

Supply Ability : 300 set per month

Delivery Time : 7-15days

Packaging Details : ABS box

Range : 5km

Frequency : 2.4GHz

Video&data : HDMI x1 IP Ethernet x1 TTL x1

band : 4MHz

RF power : 500mW(27dBm)

Latency : ≤15-30ms

Contact Now

CD05HPT Drone Video Transmitter Adjustable Video Resolution and Bit Rate Output

CD05HPT Drone Video Transmitter & Receiver Specifi...

1. Introduction

CD05HPT Low Latency 50ms S Band 2.4G Drone Video Transmitter Airborne Uplink
CD05HPT is a mini Full HD Video links and duplex data telemetry control system for unmanned aerial vehicles drones provided full hd video data control, ttl protocal & payload in and out,It support video format(H.264+H.265) coding&decoding technology to achieve.Utra-high resolution(1080P/30fps), long distance(air to ground 10km) and low delay(50-100ms) transmission.
The systemsupports two-way(data) duplex communication, adjustable video resolution, bit rate output with 115200. It can using on industrial drone, drone, mapping drone, delivery drone.

2. Feature

  • Working Temperature: -40℃—+85℃
  • Support TTL/Mavlink Telemetry
  • Support H.264 and H.265 coding and decoding.
  • High video streaming signal
  • Offering control, telemetry & payload HD and ethernet video out.
  • Video: Video sources self-adaptive(Max 1080P/60), Support HD digital Input/output


3. parameters

Wireless
Frequency Range2.4GHZ (2402-2482GHZ)
Bandwidth4Mhz
Data Rate3 ~ 5Mbps
RF Power500mW (Air to Ground 5km)
Error DetectionLDPC FEC,Video H.264/265 Super Error Correction
Latency≤15-30ms
Receive Sensitivity-100dBm@4Mhz

Video
Video InputMini HDMI
RessolutionUltra HD 1080p/60fps
Compressed FormatH.264/H.265
Color Space4:2:0(Default),4:2:2/4:4:4(Op.)

System
Start-up Time≤30s
TransmissionVideo＋Duplex Control Data
Data ProtocolSBUS/TTL/MAVLINK Telemetry
Power SupplyDC7 ~ 18V Power Supply
SecurityAES128 Encryption

Interface
RF AntennaSMA×1
HDMI InterfaceMini HDMI(HDMI Type C)×1
Serial Port InterfaceTTL Serial to USB Connector×1
Ethernet InterfaceEthernet to RJ45 Connector×1
Power Input2Pin to DC Jack Connector×1

Physical
Dimension72x47x19mm
Weight94g(Transmitter),94g(Receiver)
Operating temperature-40°C ~ ＋85°C


4. Technical Support of drone radio links

Q1:How long range from air to ground?
4-6km from airborne to ground

Q2:Video output type?
HD+Ethernet RJ45 Port

Q3:Frequency would be?
2.4GHz S band only

Q4:Transmitting power?
27dbm 0.5Watts

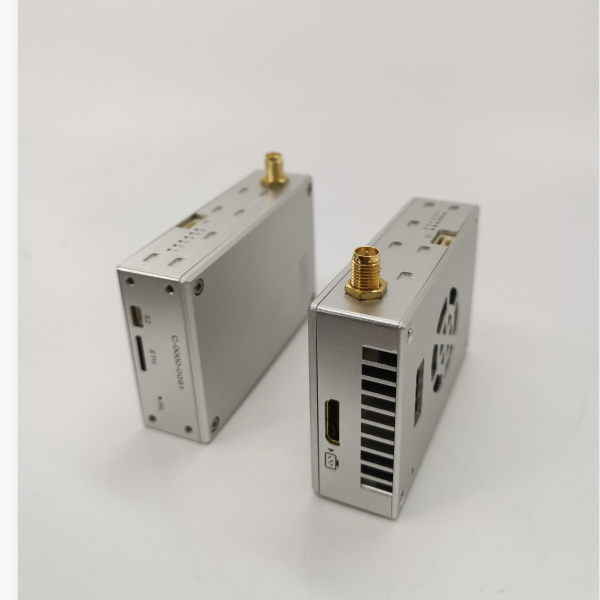

5. Product picturer

CD05HPT Low Latency 50ms S Band 2.4G Drone Video Transmitter Airborne Uplink
